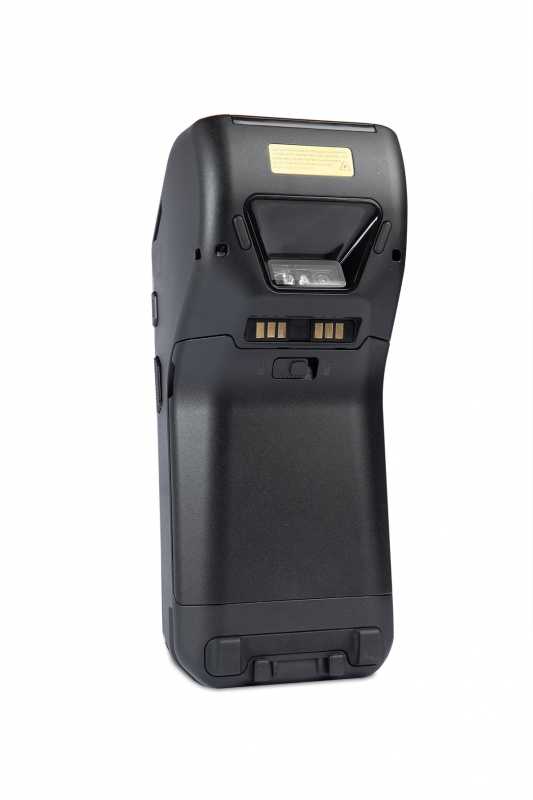

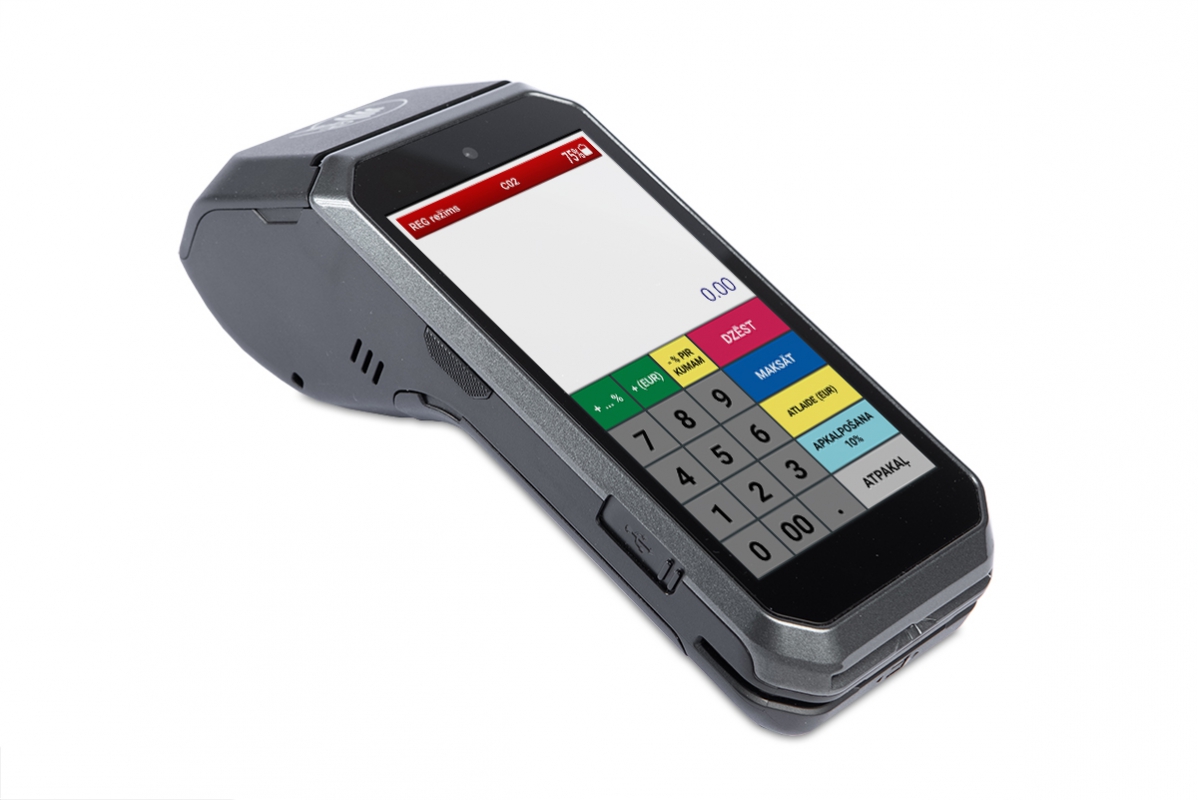

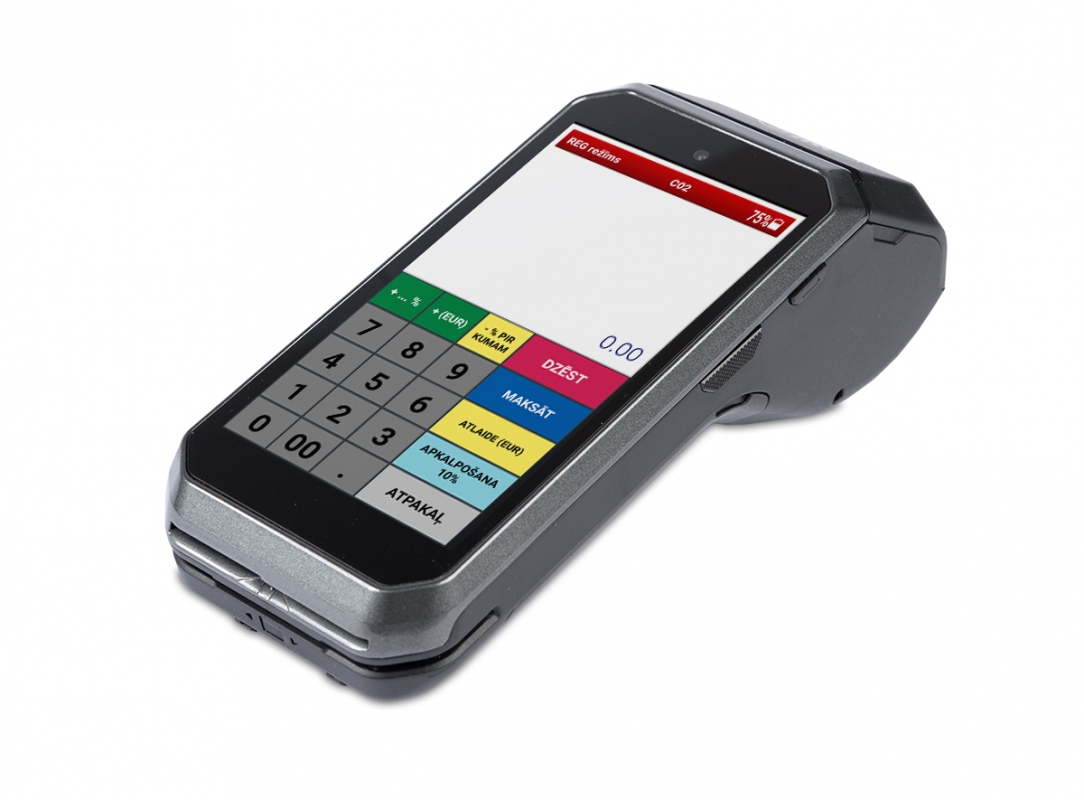

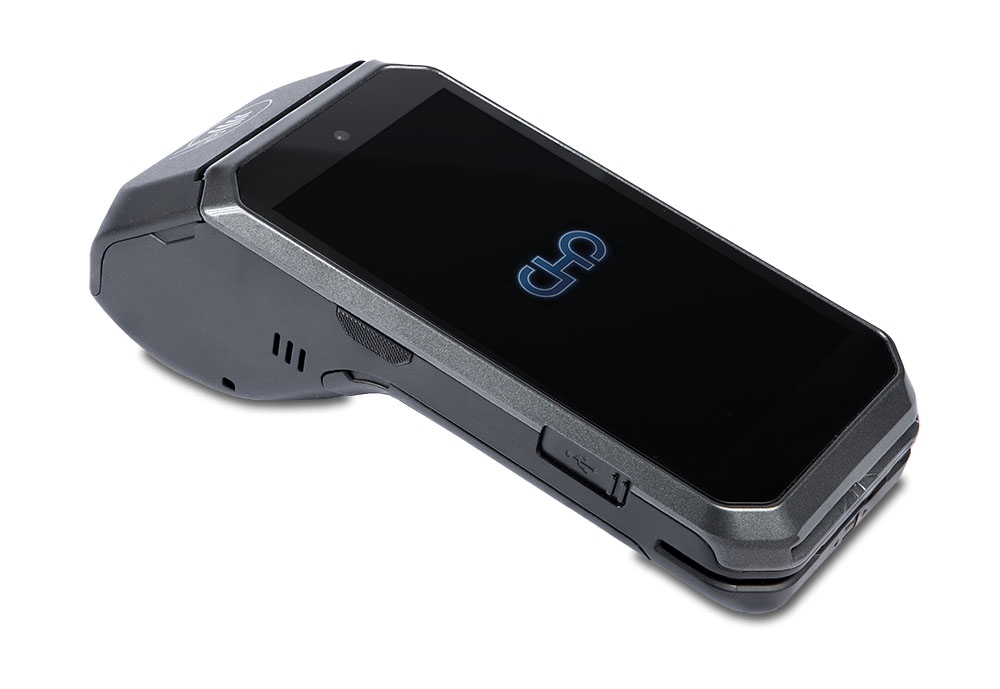

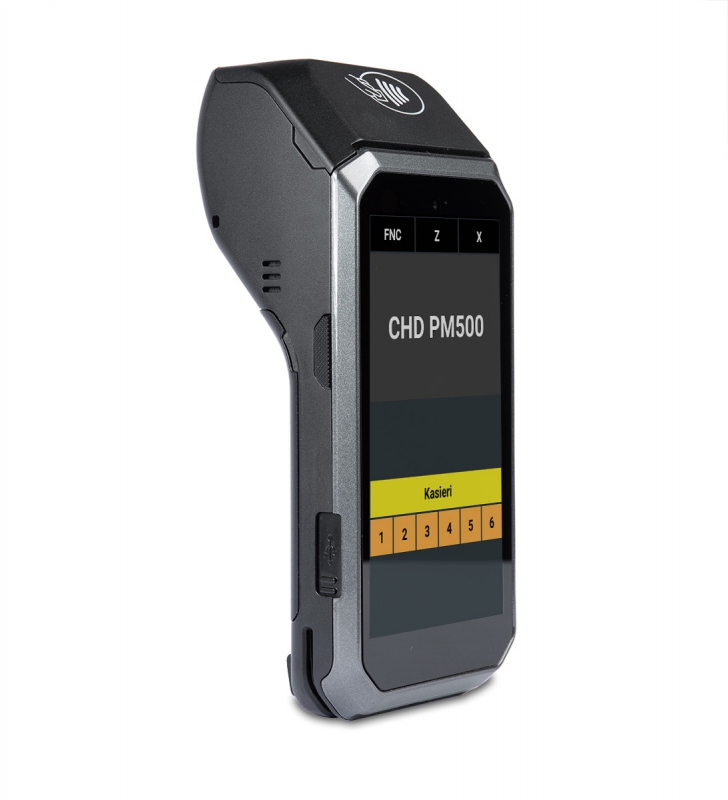

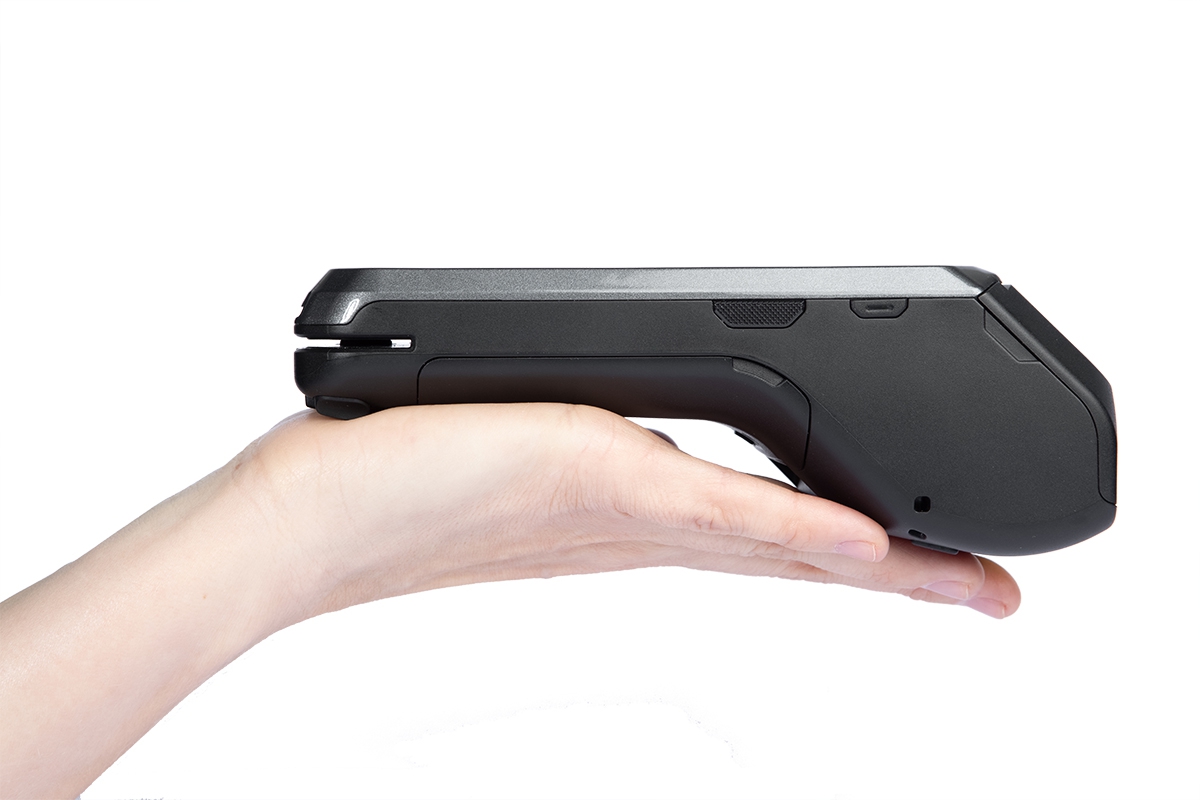

The CHD PM500 is a mobile cash register system – one device for your point of sale, if you require both mobility and compactness. The palm-sized unit combines a cash register, a receipt printer and a barcode scanner. The ideal tool not only for off-site sales, but also for any other point of sale.
CHD miniPOS software provides all the necessary functionality of a traditional cash register – sales of goods, granting of discounts, preparing of reports. Colorful screen layouts make the system intuitive and easy to use, so you can focus on the main tasks – running the store, restaurant or other business with a modern billing system.
| System | |
|---|---|
| Operating system | Android 7.1 Nougat, FOTA (Firmware Over The Air) update |
| CPU | Qualcomm MSM8909 1.1GHz |
| RAM | RAM/ROM, 1GB / 8GB or 2GB / 16GB (option) |
| Storage | 1 Micro SD card, supports up to 32 GB |
| SAM | 4 Micro SAM |
| SIM | 1 Micro SIM |
| Sensors | ambient light sensor, accelerometer |
| USB | USB Highspeed 2.0 Type C / OTG (charging, data transmission, USB memory) |
| LAN | IEEE 802.11a/b/g/n, IEEE 802.11d/h/i/k/r/v |
| Bluetooth | 4.2 BLE, Class 1 |
| Integrated fiscal memory | Yes |
| ECR parameters | |
|---|---|
| Number of PLUs | 4900 |
| Number of departments | 99 |
| Number of taxes | 4 |
| Number of payment types | 99 |
| Number of currencies | 99 |
| Cashiers, users | 99 |
| Graphic logo | Yes |
| Reports | Financial, Tax, PLU, Cashier, Hour, In-Drawer |
| Electronic journal | Yes |
| Connection to PC | Yes |
| Physical parameters | |
|---|---|
| Audio | rear speaker |
| Battery | battery, 7,4V 3000mAh |
| Operating temperature | -10°C to 50°C |
| Storage temperature | -20°C to 70°C |
| Humidity | 5%~95% relative humidity, non-condensing |
| Keys | on-off button, scanning button (right, left) |
| Camera | rear, 2MP |
| Weight | 450 g |
| Size | 179 mm x 77,5 mm x 64 mm |
| Display | |
|---|---|
| Display size | 5.0” |
| Touch | Multi-touch, can be used with stylus |
| Resolution | 720x1280 pixels or more |

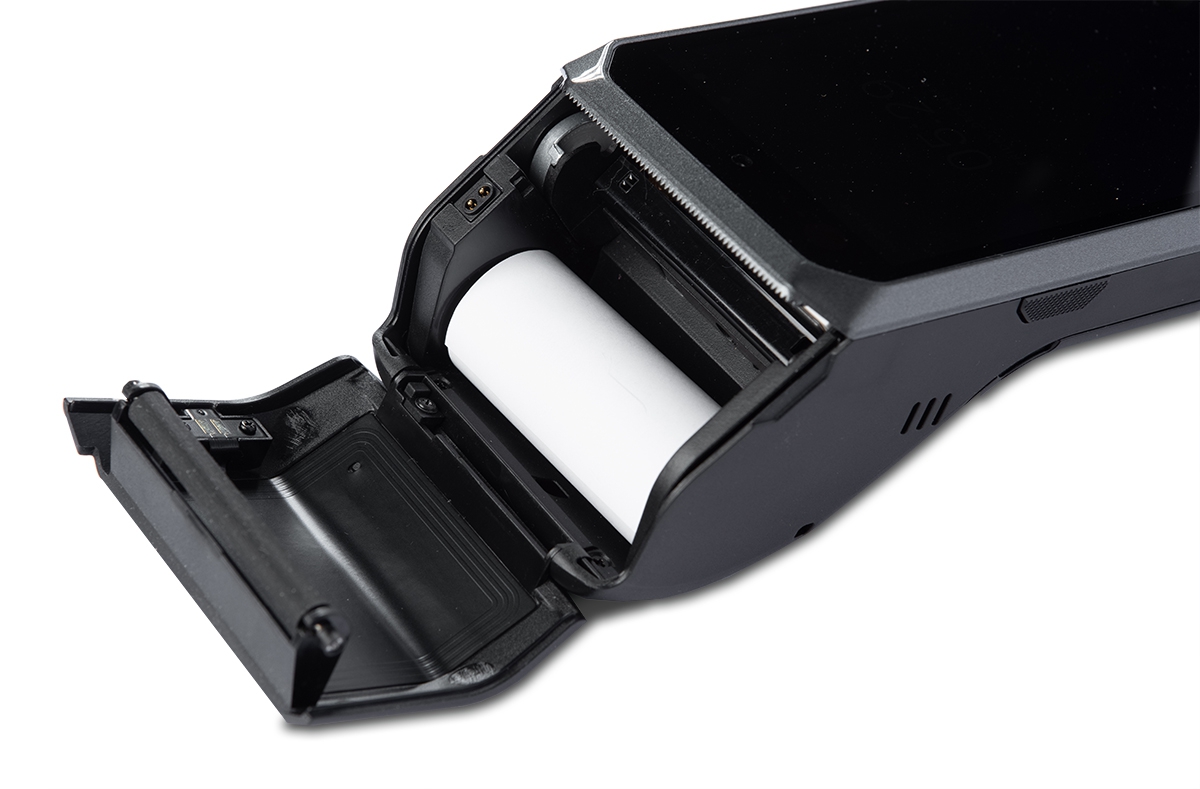

| Printer | |
|---|---|
| Printing method | Thermal |
| Paper width | 58 mm |
| Print speed | max. 85 mm/sec. |
| Software | |
|---|---|
| Sales software | CHD mini POS |
| Payment | |
|---|---|
| MSR | Track 1/2/3, bi-directional |
| Contact | EMV Contact L1/L2 |
| Contactless | EMV Contactless L1 / EMV Kernels (VISA, Master, Union-Pay, AMEX, JCB, D-PAS) |
| Security | PCII PTS 5.x PED |
| Options | |
|---|---|
| Front camera | 8 MP |
| RFID | 900MHz UHF |
| Scanner | 1D/2D barcode scanner |
