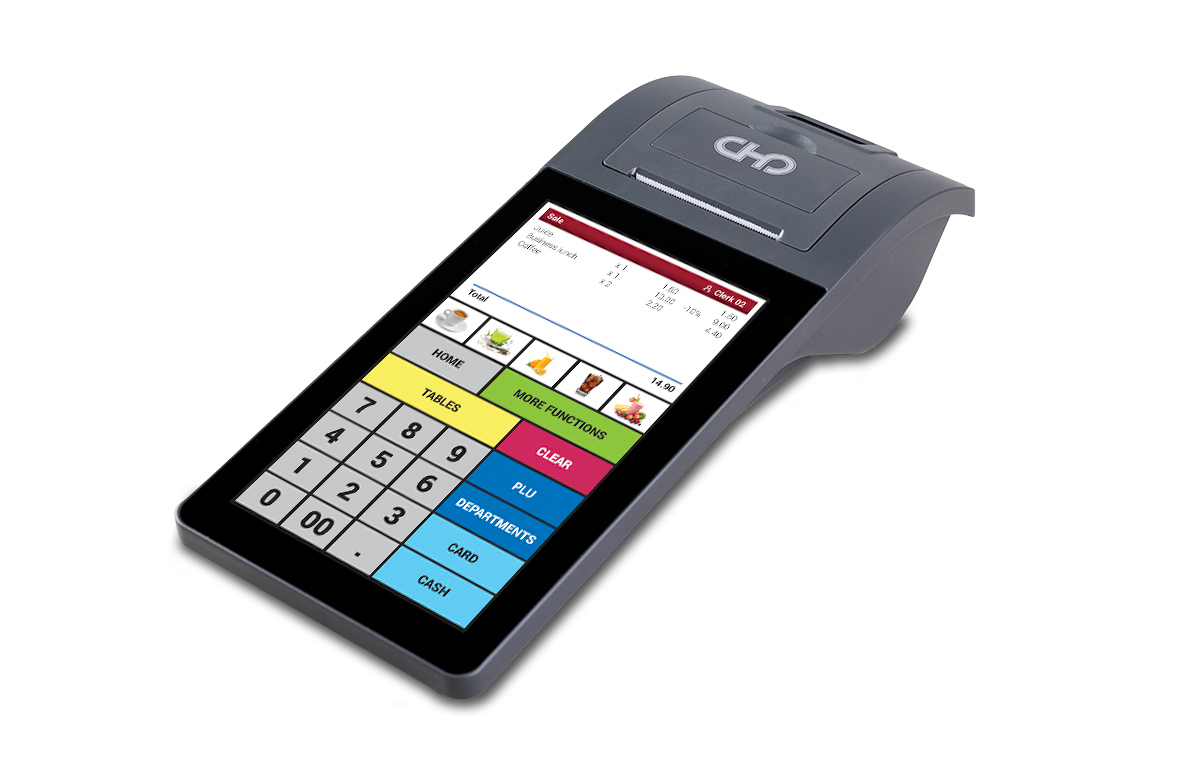

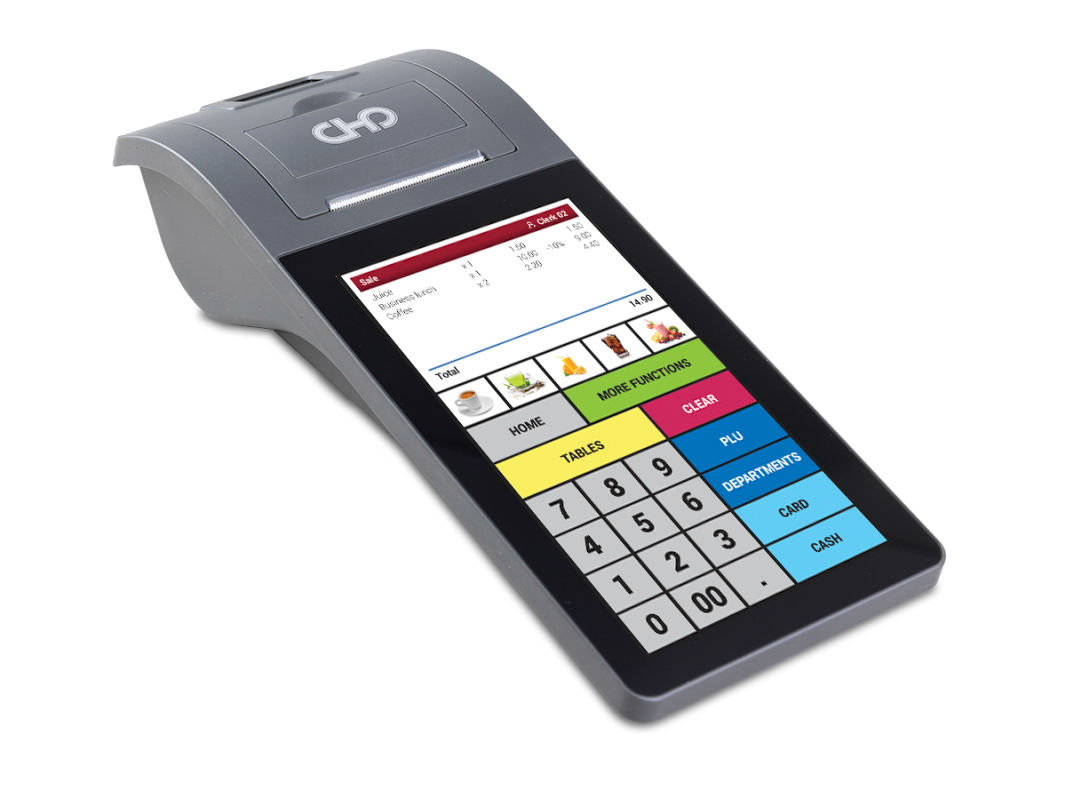

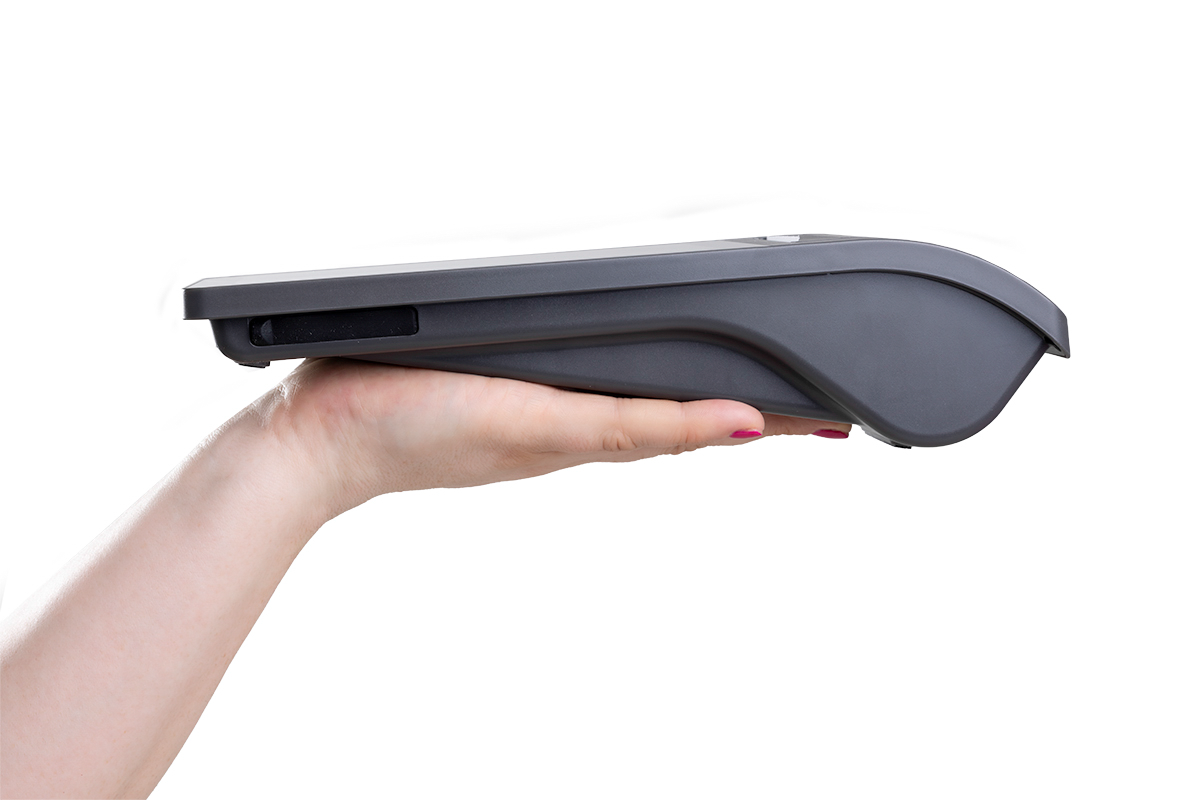

Introducing the CHD 7A, a versatile mobile POS system designed to meet all your needs with its compact and modern design. Slightly larger than the size of your palm, this all-in-one device features a 7" LCD display, an easy-to-load printer with a 50 mm paper roll capacity, a built-in battery, and NFC capabilities. Enhance its functionality with the optional miniPOS cloud sales app, transforming the CHD 7A into a standalone, jet cloud-based sales system reachable from anywhere and anytime.
| System | |
|---|---|
| Operating system | Android 11 Red Velvet Cake |
| CPU | Quad-core ARM Cortex-A55: RK3566 |
| GPU | Mali-G52 GPU |
| Main requency | up to 2.0 GHz |
| RAM | 2 GB |
| Storage | eMMC 16GB |
| SD card slot | up to 128 GB |
| Display | |
|---|---|
| Display size | 7" LCD |
| Touch | Capacitive multi-touch screen |
| Resolution | 1024 x 600 |

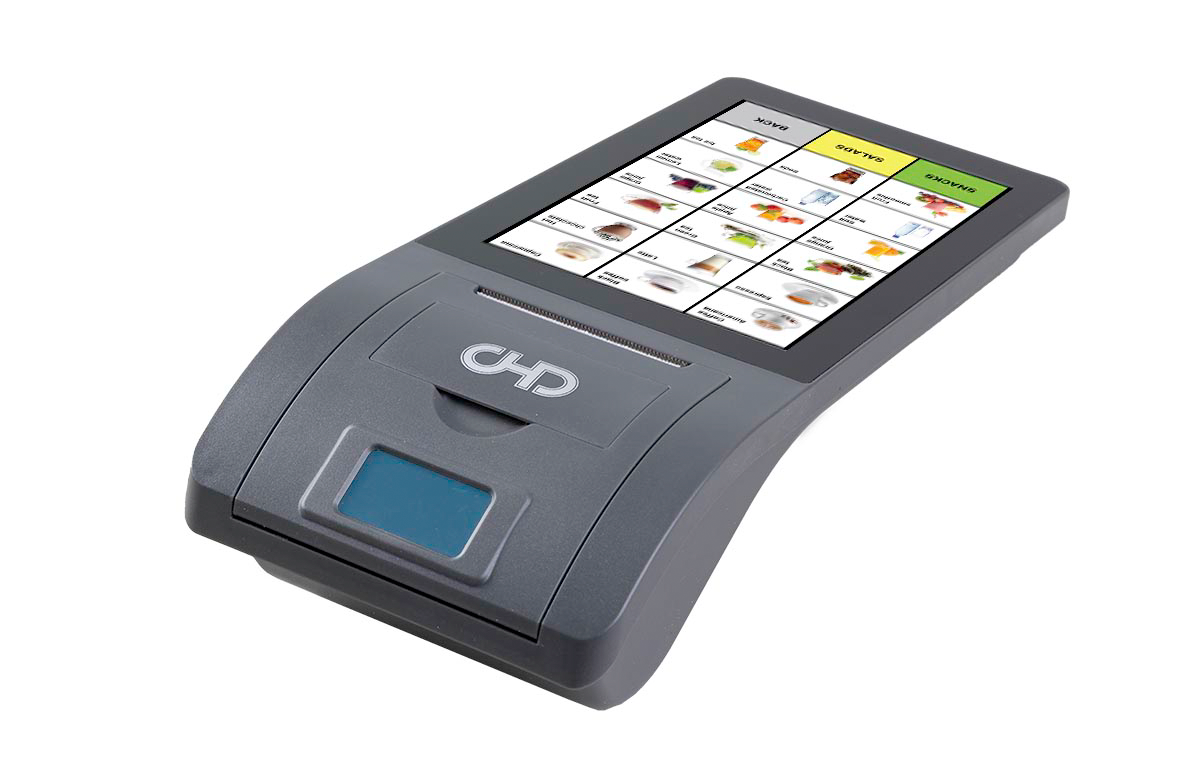

| Customer display | 1.47" LCD |

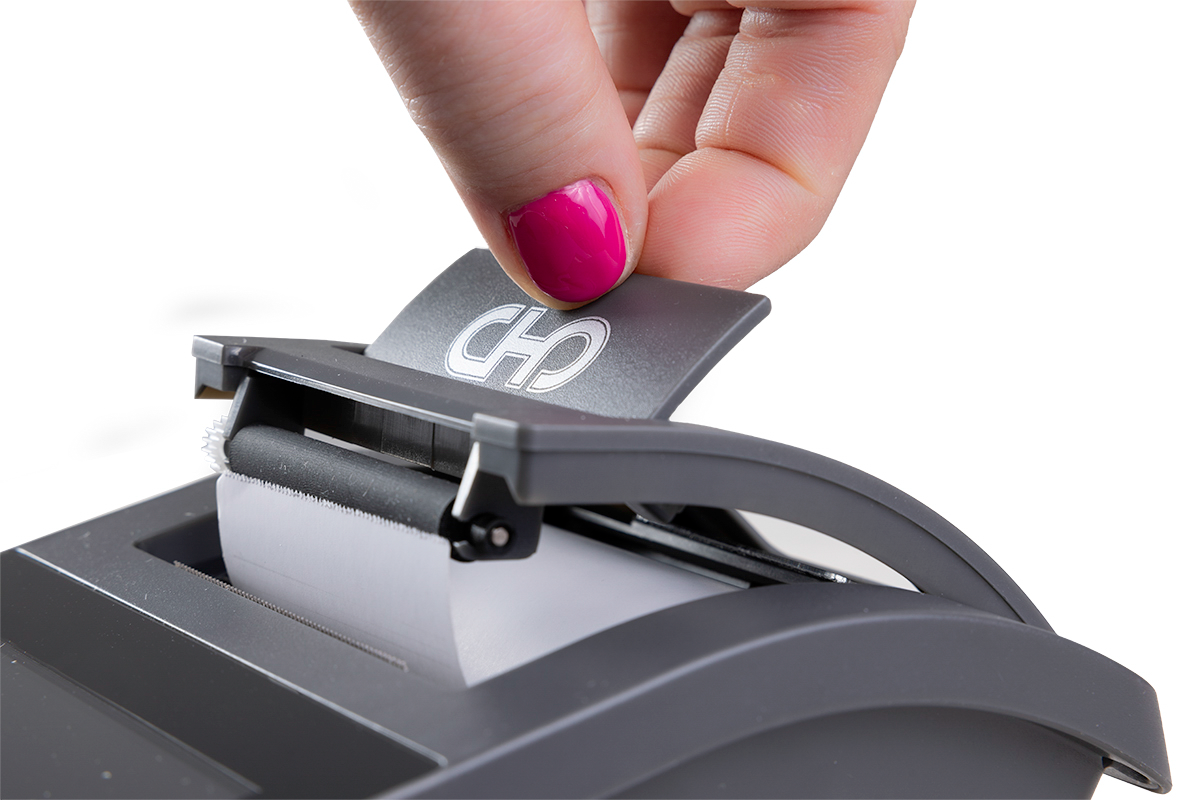

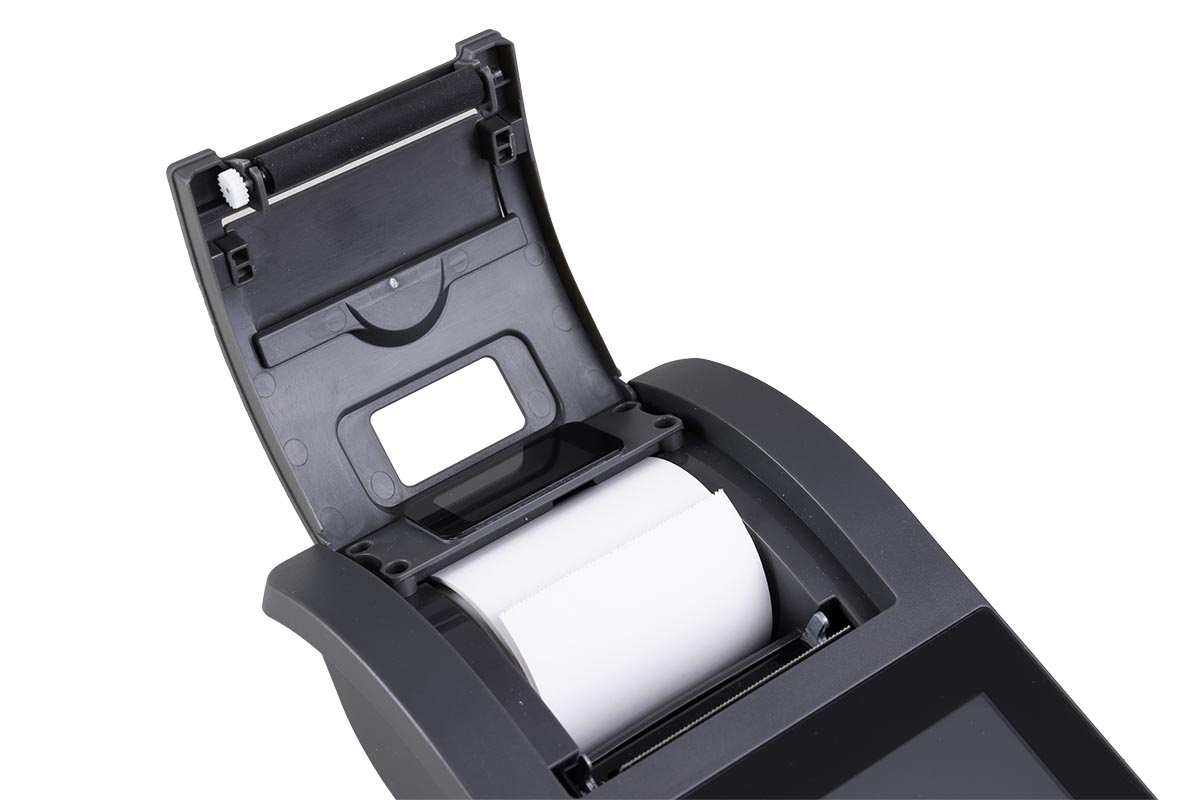

| Printer | |
|---|---|
| Type | Manual cutter |
| Paper width | 58mm |
| Paper roll diameter | max. 50 mm |
| Printer abrasion resistance (km) | 50 km or more |

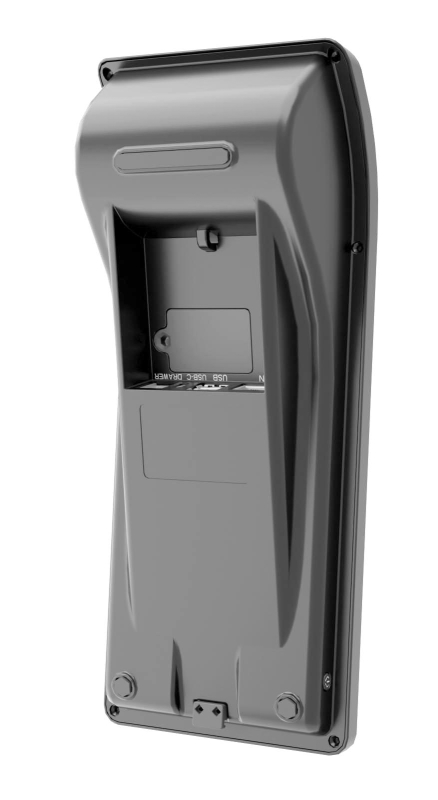

| Interface | |
|---|---|
| USB-A ports | 2 x USB HOST |
| USB type-C | 1 charging, USB UFP (client) |
| Cash drawer port | 1 x RJ11, 9V |
| SIM card slot |  |
| LTE/4G | |
| Communications | |
|---|---|
| LAN | RJ45 10/100M |
| Wi-Fi | Wi-Fi 802.11b/g/n/ac (2.4GHz+5GHz) |
| Bluetooth | 5.0 |
| NFC | |
| Audio | Beeper |
| Power | |
|---|---|
| Integrated battery | 2600mAh |

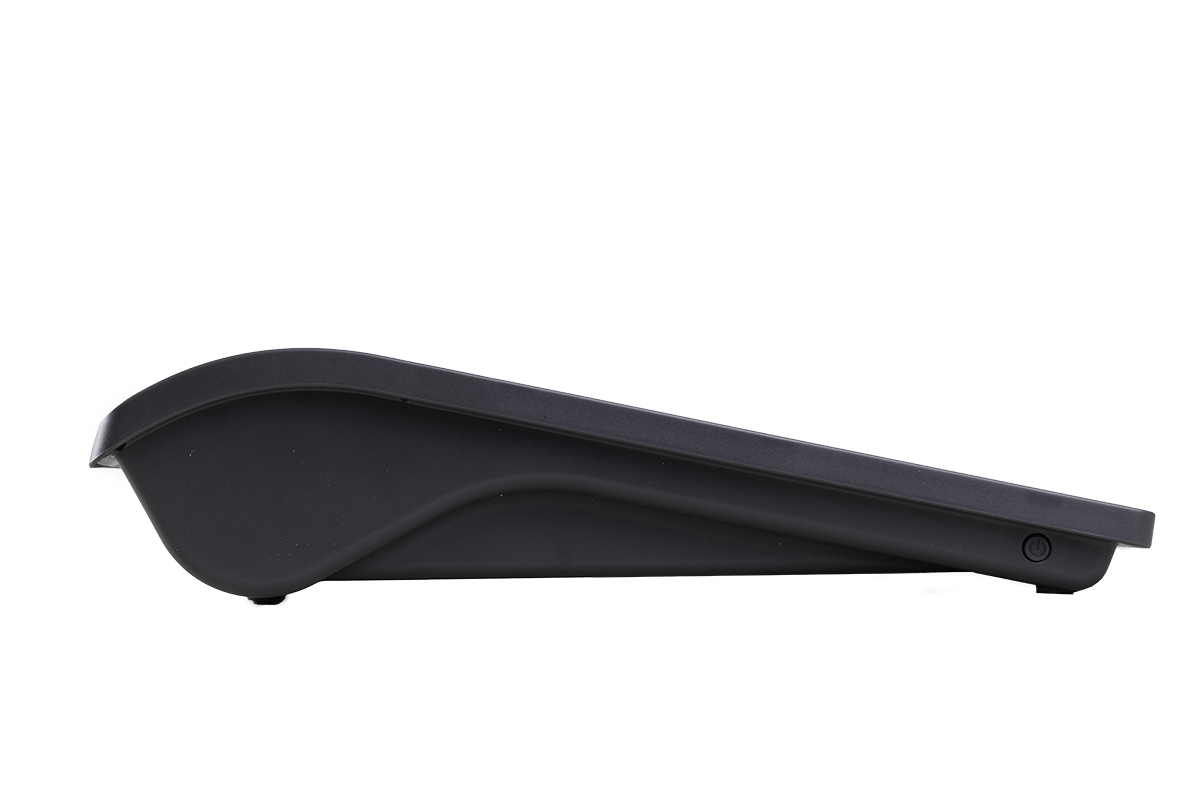

| Power button | |
| Charger | DC 5V 2A USB type-C |
| Fiscal memory | |
|---|---|
| Memory compartment | Yes, USB interface |
| Fiscal memory | Optional |
| Other features | |
|---|---|
| Certification | CE, others on demand |
| Housing | Plastic |
| Warranty | 1 year |

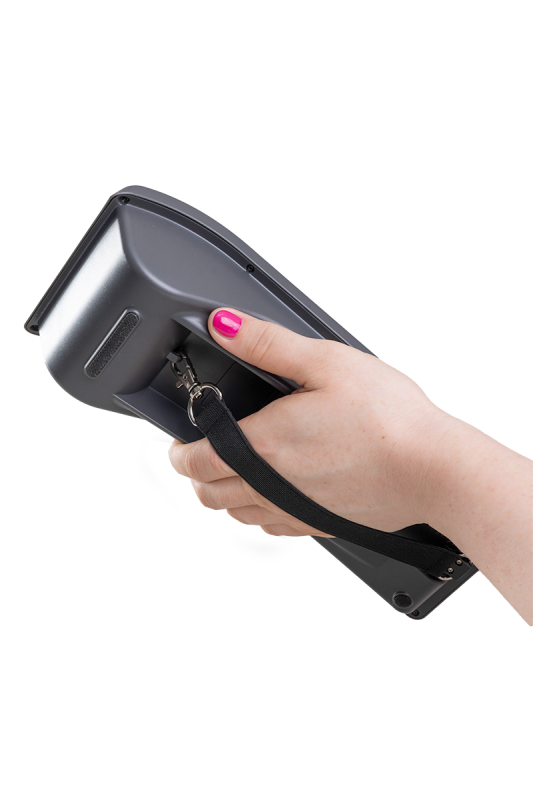

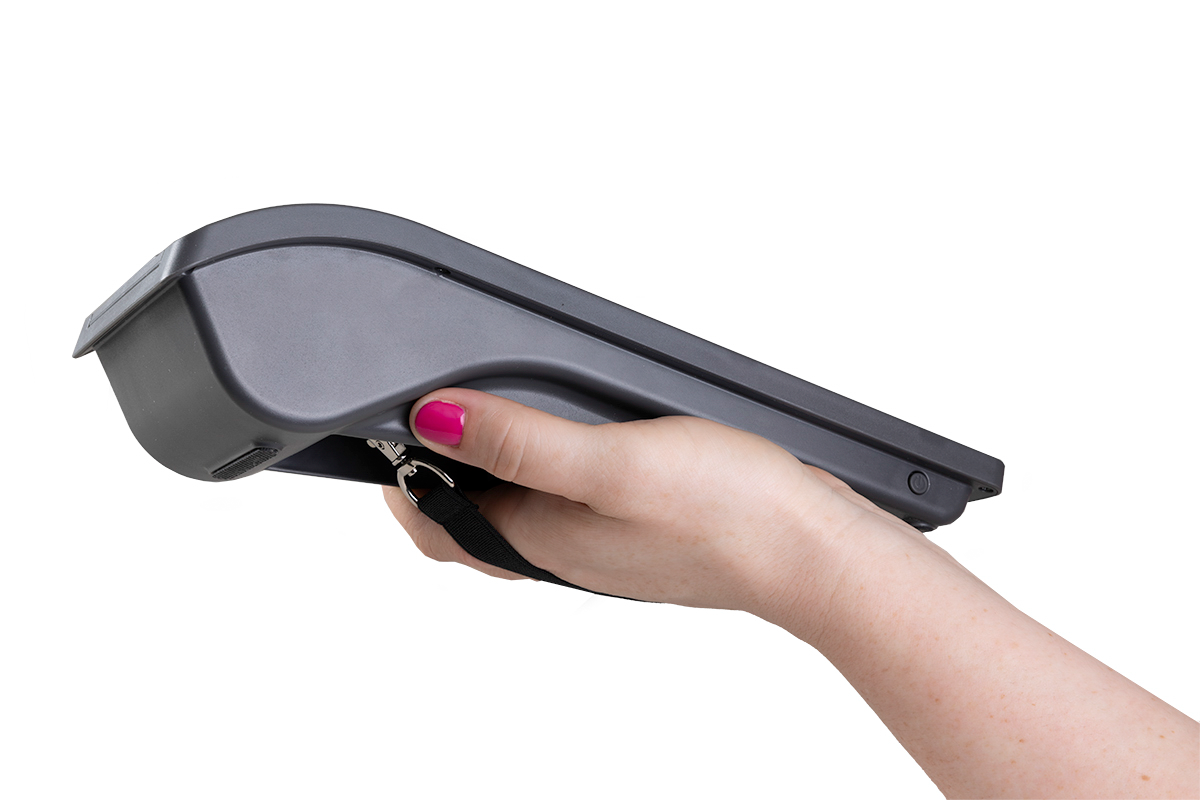

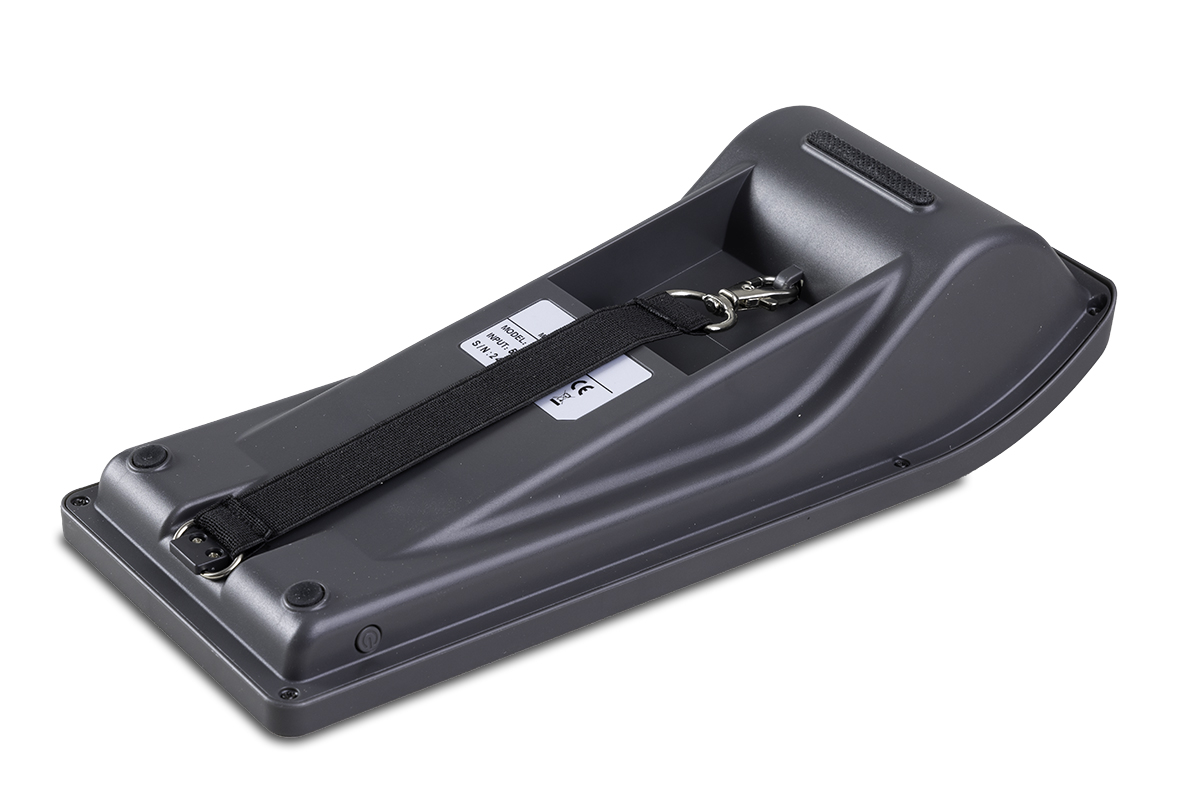

| Hand strap | |
| Software | miniPOS (Optional) |
