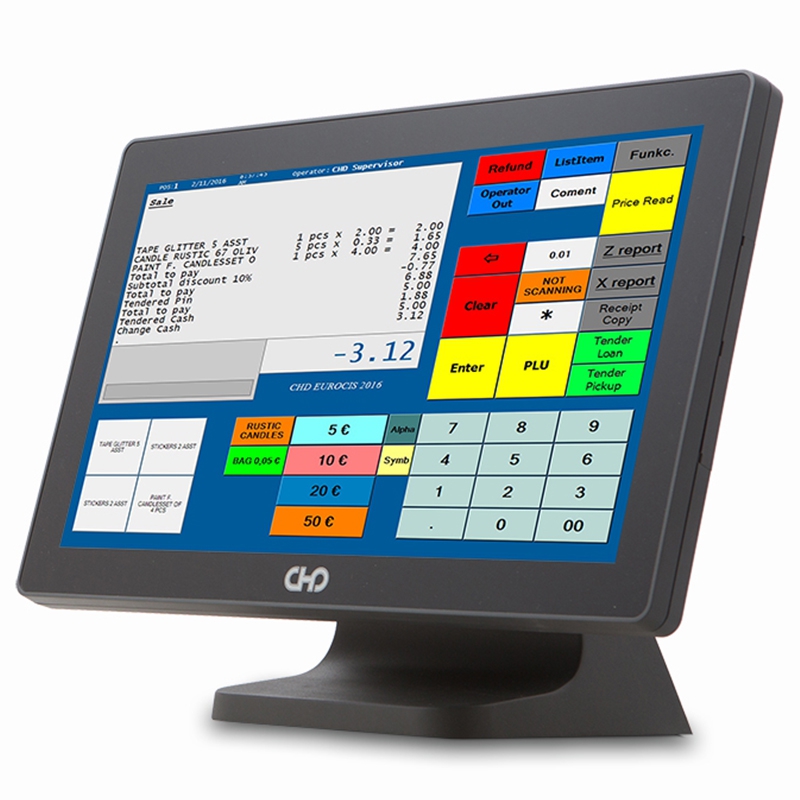

CHD 8770C

18,5'' HD Wide-screen
Performance POS system
  • 18,5'' touch screen for more application space
  • Performance model with Intel® Celeron® G3900
  • Slim housing & compact footprint design
  • Stylish modern design
  • Robust Aluminum Alloy (die-casting) housing and stand
  • Easy maintenance-Quickly disassembly of POS terminal and stand
  • Various POS peripherals for all requirements
  • Designed for 24/7 operation
  • CHD8770 is ideal for application in retail, self-service or hospitality environment
System
OS Windows® 10
CPU Intel ® Celeron ® G3900
RAM 4GB, 1 x DDR3 (up to 8GB) - 1600Hz (1,35V), SO-DIMM
Storage 64 GB SSD
Ports 4 x COM ports RJ-45 connectors (2 ports with power: 5V=green LED/12V=yellow LED, enabled by BIOS)
USB 6 x USB (2 x USB 3.0 - 4 x USB 2.0)
LAN 1 x RJ-45 (10/100/1000Mbps Giga LAN)
Audio 1 x combo (Mic & Line-out)
Drawer 1 x RJ-11 (12V/24V)
Second Display 1 x HDMI (12V power by DC-jack, enabled in BIOS)
Integrated fiscal module
Physical parameters
Modular / one-piece All in one
Screen 18.5" LED LCD
Resolution 1920 x 1080
Power DC 120W, 19V, 6,32A
Operating temperature 0°C to +60°C
Operating humidity 20% to 80% RH non-condensing
Audio 2 x 2W
Wall mount 70mm x 70mm & 100mm x 100mm VESA mounting hole for panel PC type
Weight 6,9kg
Dimensions 470 x 200 x 350 mm
Approvals FCC, CE
Display
Type Projected Capacitive with 10 touch points
Brightness 300 cd/m²
Options
Fiscal Yes
Customer display 2x20 VFD or 10.1 , 14" or 15" Second LCD Display with or without touch (option)
Fingerprint 1 (USB) (option)
MSR 3 Tracks MSR USB (option)
